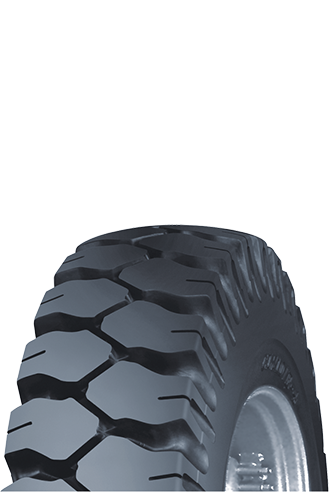

CL710
Size | Ply Rating | Service Index | Standard Rim | Tread Depth (mm) | Overall Diameter (mm) | Section Width (mm) | Max. Load Capacity (kg) | Cold Inflation Pressure (kPa) |
|---|---|---|---|---|---|---|---|---|
11.00-20 | 18 | - | 8.00 | 35.0 | 1105 | 293 | 3135 | 650 |
11.00-20 | 20 | - | 8.00 | - | 1105 | 293 | 3410 | 750 |
12.00-20 | 18 | - | 8.50 | - | 1145 | 315 | 3585 | 650 |
12.00-20 | 20 | - | 8.50 | - | 1145 | 315 | 3900 | 750 |
12.00-24 | 20 | - | 8.50 | - | 1275 | 315 | 3750 | 550 |
*Reserves the rights of final interpretation and modification;
